Android 4.1
OMAP 4430 Dual Core 1 GHz
7.0“ TFT LCD WSVGA (1024 x 600)
16 GB iNAND
Erweiterungssteckplatz
microSDHC (up to 32 GB)
I/O Interface
1 x USB (Client, 2.0)
1 x USB (Host, 2.0)
1 x Microphone
1 x Speaker
1 x DC in Jack
1x Docking connector (30-pin)
Communication Interface
Optional 3.5G WWAN
(HSPA+/UMTS/EDGE/GPRS/GSM) for data and voice communication
802.11 b/g/n
Bluetooth (v2.1+EDR class 2)
SiRFstarIV™ GPS (with internal antenna)
Software
File Manager
GPS-ECompass
Barcode Utility
Barcode Config
RFID Reader Utility
Power
AC charger (24W; 12V/2A, 100-240 VAC; 50 / 60 Hz)
Lithium-Polymer smart battery (7600mAh)
(up to 10 hours of battery life)
Charging time: Sleep mode, approx. 6 hours

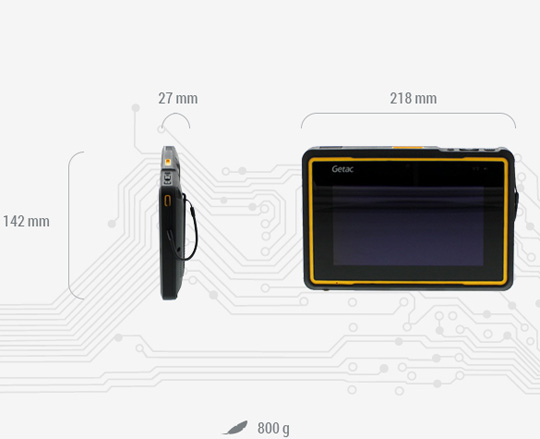

Dimension (W x D x H) & Weight
21,8 x 14,2 x 2,7 cm
800 g
Field Service Feature
GPS: SiRFstarIV™
HD Web camera
5M pixels auto focus camera
E-compass
G-Sensor
Optional 1D / 2D Imager Barcode reader
Optional 13.56MHz RFID and contactless Smart Card Reader (ISO 15693 and 14443 A/B compliant)
GPS Sensor
Specification
Chipset: SiRFstarIV™
Receiver Type: L1 (C / A)
Channels: 48 channels all-in-view tracking
Update Rate: 1 Hz
Horizontal Accuracy:
Autonomous: 2.5 m / 8.2 ft
DGPS: 2.0 m / 6.56 ft
Cold Start Time: 35 sec average
Warm Start Time: 35 sec average
Hot Start Time: 1 sec average
Reacquisition: 0.1 sec average
Rugged Feature
MIL-STD-810G and IP65 certified
Optional ANSI/ISA 12.12.01
Vibration resistant
Drop resistant (26 drops from 1.82m / 6ft)
Environmental
Specification
Temperature:
- Operating: -20 °C to 50 °C
- Storage: -40 °C to 71°C
Humidity: - 95 % RH , non-condensing
Alphanumeric
Data Entry
Soft input panel (SIP) on screen keyboard
Security Feature
WiFi for WPA / WPA2 operation
Authentication: OPEN, SHARED-KEY, PEAP
Encryption: WEP, AES, TKIP
Native software encryption, root protection, IPSec VPN,
software security support, network proxy settings,
password security (PIN, pattern, password)
Scope of Delivery
- AC charger
- Quick start guide
- Capacitive stylus and tether
- Wrist strap
- Hand strap
- ATEX rubber I/O cover
- ATEX safety precautions manual
