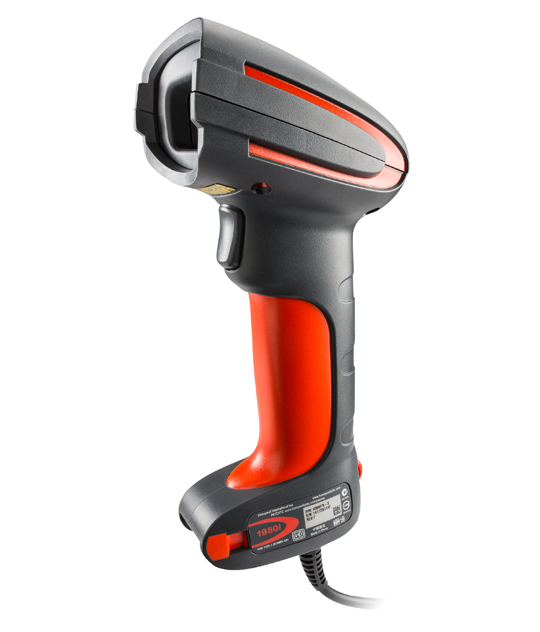

Honeywell Granit 1980i
The Granit™ 1980i industrial-grade scanner features full-range area-imaging technology capable of reading both 1D and 2D barcodes across a wide range of distances. From poor quality 2 mil codes scanned at close range, to 100 mil codes hanging from warehouse rafters scanned at ranges of 52 feet (16m), the 1980i is built to perform. With an unmatched range that provides incredible versatility, Granit enables maximum operator productivity in the harshest environments.
Top Sellers
1980IFR-3SER
Granit 1980i Serial Kit Serial Kit, Full Range 2D Imager. Includes RS-232 cable.
1980IFR-3USB
Granit 1980i USB Kit USB Kit, Full Range 2D Imager. Includes USB cable
1980IFR-3
Granit 1980i SCANNER ONLY, Full Range 2D Imager.
Can’t find the correct specification?
Want more than one?
Call our friendly and knowledgeable team who will guide you through the selection process.
*Fluctuations in exchange rates can affect purchase price - please call for latest pricing.
CBL-020-300-C00
Honeywell 3M Coiled RS232 Cable (9 Pin, 5V Signals) 5V external power with option for host power on pin 9
Mfr Part # CBL-020-300-C00
List Price: £13.94
Our Price: £10.51
CBL-120-300-C00
Honeywell 3M Coiled RS232 Cable (9 Pin, +/-12V Signals) 5V external power with option for host power on pin 9
Mfr Part # CBL-120-300-C00
List Price: £26.87
Our Price: £20.27
CBL-500-300-S00
Honeywell 3M USB, black, Type A, straight, 5V host power
Mfr Part # CBL-500-300-S00
List Price: £13.94
Our Price: £10.54
CBL-500-300-C00
Honeywell 3M USB, black, Type A, coiled, 5V host power
Mfr Part # CBL-500-300-C00
List Price: £13.94
Our Price: £10.54
TOOLBAL
Take up reel/balancer
Mfr Part # TOOLBAL
List Price: £54.88
Our Price: £41.40
VMHOLDERK
Vehicle Mount Kit (contains vehicle mount forked holder (VM Holder), adjustable arm with ball joints (ADJARME) and mounting hardware)
Mfr Part # VMHOLDERK
List Price: £73.97
Our Price: £55.98
SVC1980I-5FC5
1980i Full Comprehensive 5 Year Warranty (5 Day Turn)
Mfr Part # SVC1980I-5FC5
List Price: £43.13
Our Price: £40.65
SVC1980I-1FC5
1980i Full Comprehensive 5 Year Warranty (1 Day Turn)
Mfr Part # SVC1980I-1FC5
List Price: £48.92
Our Price: £46.29
Honeywell Granit 1980i
specification
Mechanical
Dimensions
(LxWxH) 133 mm x 75 mm x 195 mm (5.2” x 2.9” x 7.6”)
Weight
335 g (11.8 oz)
Electrical
Input Voltage
4.0 to 5.5 VDC
Operating Power
2.35 W (470 mA @ 5.0 V)
Standby Power
0.5 W (100 mA @ 5.0 V)
Host System Interfaces
USB and True RS232
Environmental
Operating Temperature
-30°C to 50°C (-22°F to 122°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Humidity
0 to 95% relative humidity, non-condensing
Drop
Designed to withstand 50 2m (6.5’) drops to concrete at -30°C
Tumble
5,000 1m (40˝) tumbles
Environmental Sealing
IP65
Light Levels
0 to 100,000 lux (9,290 foot-candles)
ESD
±20Kv air discharge, ±8kV contact discharge
Scan Performance
Scan Pattern
Area Imager
Scan Angle
Horizontal: 12.9°
Vertical: 8°
Symbol Contrast
1D Codes: 30% minimum reflectance difference
2D Codes: 40% minimum reflectance difference
Min. Resolution
1D & 2D Codes: 2 mil
Pitch, Skew
70°, 80°
Warranty
3 year factory warranty
