7.34 in. H x 4.82 in. W x 2.93 in. D
18.65 cm H x 12.25 cm W x 7.43 cm D
Performance Characteristics
Scanner Type:
Retrocollective
Light Source:
650 nm visible laser diode
Scan Repetition:
36 scans per second typical
Min. Element Width:
7.5 mil/0.191 mm
Working Distance:
See Decode Zone
Print Contrast:
25% minimum reflective difference
Roll (Tilt):
1 ± 10° from normal
Pitch:
2 ± 65° from normal
Skew (Yaw):
3 ± 60° from normal
Decode Capability:
UPC/EAN, UPC/EAN with Supplementals,
GS1-128 (formerly UCC/EAN 128), JAN 8 &
13, Code 39, Code 39 Full ASCII, Code 39
Trioptic, Code 128, Code 128 Full ASCII,
Codabar (NW7), Interleaved 2 of 5, Discrete
2 of 5, Code 93, MSI, Code 11, Code 32,
Bookland EAN, IATA, GS1DataBar
(formerly RSS)
Interfaces Supported:
RS232, Keyboard Wedge, Wand
Emulation, Scanner Emulation,
IBM 468X/469X, USB and Synapse
User Environment
Operating Temp.:
-22° to 122° F/-30° to 50° C
Storage Temp.:
-40° to 158° F/-40° to 70° C
Humidity:
5% to 95% relative humidity, non-condensing
Sealing:
Sealed to IP65 specifications
Drop Specifications:
Unit functions normally after 50 drops
to concrete from 6.5 ft. (2m)
Ambient Light Immunity:
Immune to direct exposure of normal
office and factory lighting conditions, as
well as direct exposure to sunlight;
Indoor:
450 ft. candles/4,84 LUX;
Outdoor:
4,000 ft. candles/43,040 LUX
Electrostatic Discharge (ESD):
Conforms to 20 kV air discharge and 8 kV of
contact discharge
Regulatory
Input Transient Protection:
IEC 1000-4-(2,3,4,5,6,11)
EMI/RFI:
FCC Part 15 Class B, ICES-003 Class B,
European Union EMC Directive, Japan
VCCI/MITI/Dentori
Laser Safety:
IEC825-1 Class 2
Warranty

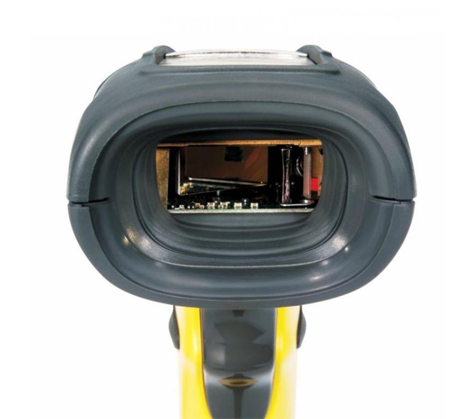

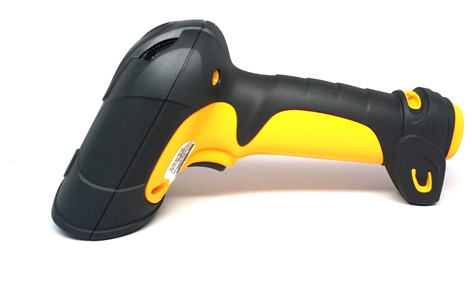

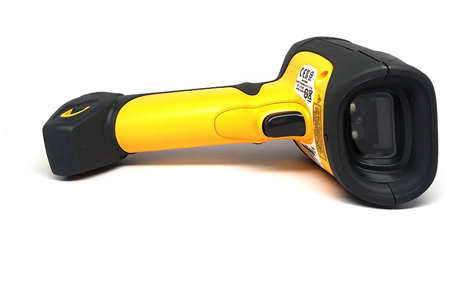

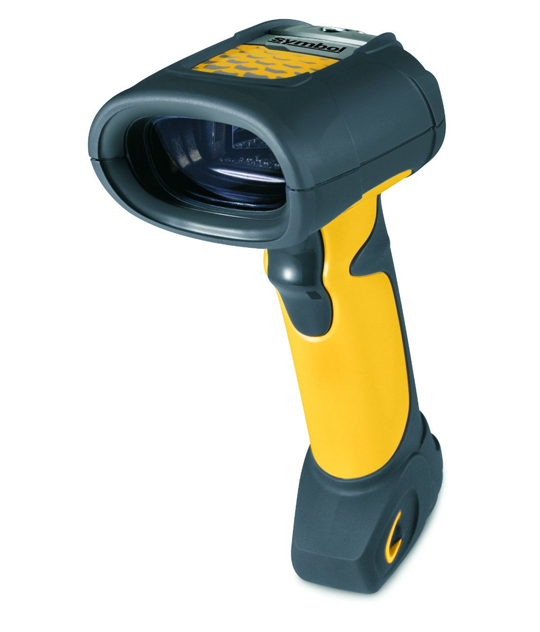

The Symbol LS3408-ER is warranted against defects in
workmanship and materials for a period of 3 years (36
months) from date of shipment, provided that the product
remains unmodified and is operated under normal and proper
conditions. See full warranty for details.
1 - Roll (Tilt): Controlled by rotating the wrist clockwise or counterclockwise
2 - Pitch: Controlled by dropping or raising the wrist
3 - Skew (Yaw): Controlled by rotating the wrist from left to right or vice versa
|
Depth of Field |
| Label Density |
LS3408-ER |
| Paper Label |
English |
Metric |
| Code 39 - 7.5 mil |
0.25” - 20.00” |
0.64 - 50.80 cm |
| Code 39 - 10 mil |
2.00” - 32.00” |
5.08 - 81.28 cm |
| Code 39 - 15 mil |
3.00” - 69.00” |
7.62 - 175.26 cm |
| Code 39 - 20 mil |
3.00” - 94.00” |
7.62 - 238.76 cm |
| Code 39 - 55 mil |
15.00” - 180.00” |
38.10 - 457.20 cm |
| Reflective Label |
|
| Code 39 - 70 mil |
Up to 30 ft |
Up to 9.27 m |
| Code 39 - 100 mil |
Up to 45 ft. |
Up to 13.72 m |
