Tab-Ex® 01 | Zone 2 & DIV 2
Overview
Much easier use with Tab-Ex®

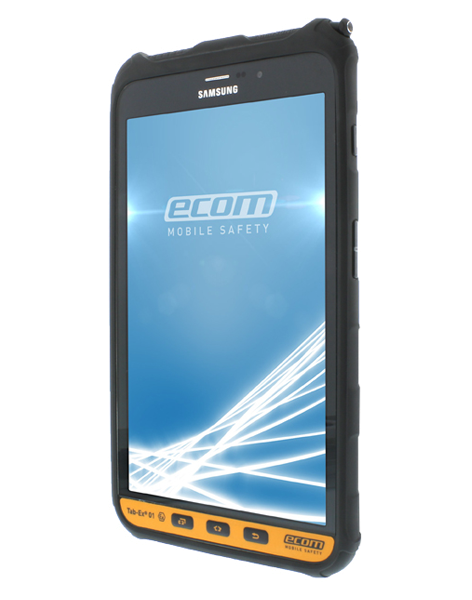

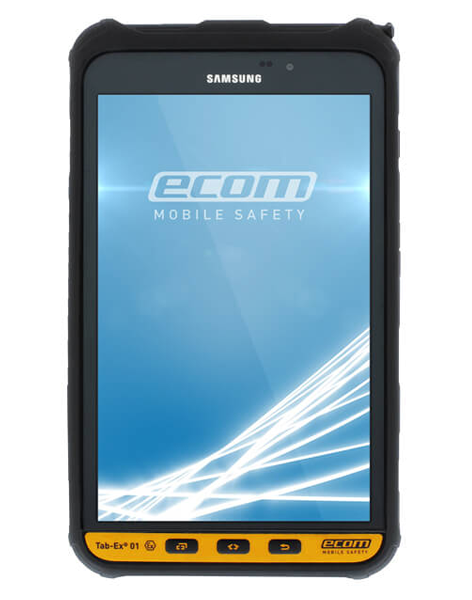

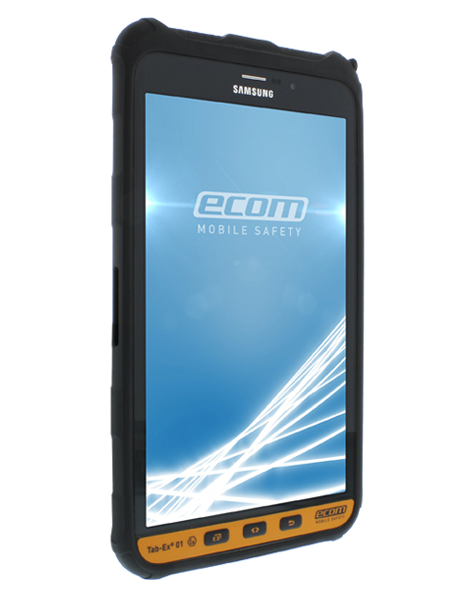

Lightweight and compact, operating on Android™ 5.1.1 Lollipop (optionally 4.4.4 KitKat) the Tab-Ex® is suitable for multiple mobile worker roles performing a range of applications, such as Asset Surveys, Material Tracking, Operator Rounds, Inspection and Maintenance. The 8“ screen enables standard desktop applications to become mobile in hazardous areas, allowing workers to view and interact with SCADA/DCS systems, enterprise systems (SAP, Maximo), and computer aided design systems.
Built-in cameras and full range of wireless capability allowing equipment defects to be captured as inspection and maintenance work is executed, and instantly visible to those who need to diagnose the issue and determine the follow-on actions.
Tab-Ex® 01 | Zone 2 & DIV 2
Tab-Ex® 01 Datasheet (PDF Download)
Info Request
Next Step, Either:
- Fill in the contact details below and hit the ‘Submit’ button.
- Telephone us on 01274 741860 (choose ‘sales’ option).
- E-mail us at sales@touchstar.co.uk
Tab-Ex® 01 | Zone 2 & DIV 2
specification
Zone 2 / Division 2
Operating System
AndroidTM Lollipop 5.1.1
AndroidTM KitKat 4.4.4
Processor
Quad core 1.2 GHz processor
Memory and Storage
1.5GB RAM + 16GB internal memory With optional microSD, expandable up to 64GB
Dimensions
131,1 x 225,1 x 13,6 mm,
thinnest Zone 2 tablet - 13,6 mm
Weight
562,1 g
Display
8 inch TFT display with 1280 x 800 pixels Z2/ DZ2: This device is protected by a special protective screen for use in Zone 2
Environmental
Operating temperature -20 … +55 °C
WWAN
LTE * (4G) Category 4:
800 / 850 / 900 / 1800 / 2100 / 2600
UMTS (3G) / HSPA (3.5G):
850 / 900 / 1900 / 2100
GPRS / EDGE (2G):
850 / 900 / 1800 / 1900
Bluetooth
Bluetooth SmartReady LE 4.0
Wireless LAN
WiFi 802.11 a/b/g/n
Power
11 hours battery life / 4450 mAh
Camera
3 MP with rear camera
Flash with Barcode Scanner
capability
1.3 MP front camera
Security
Samsung KNOX
• EMM (MDM+IAM)
• Secure file management
• H/W & S/W Secure platform
Programmable keys
Yes
Certification
ATEX and IECEx certification:
II 3G Ex ic IIC T5 Gc // Ex ic IIC T5 Gc
Division 2
Operating System
AndroidTM Lollipop 5.1.1
AndroidTM KitKat 4.4.4
Processor
Quad core 1.2 GHz processor
Memory and Storage
1.5GB RAM + 16GB internal memory With optional microSD, expandable up to 64GB
Dimensions
131,1 x 225,1 x 13,6 mm, thinnest Zone 2 tablet - 13,6 mm
Weight
495 g
Display
8 inch TFT display with 1280 x 800 pixels Z2/ DZ2: This device is protected by a special protective screen for use in Zone 2
Environmental
Operating temperature -20 … +55 °C
WWAN
LTE * (4G) Category 4:
800 / 850 / 900 / 1800 / 2100 / 2600
UMTS (3G) / HSPA (3.5G):
850 / 900 / 1900 / 2100
GPRS / EDGE (2G):
850 / 900 / 1800 / 1900
Bluetooth
Bluetooth SmartReady LE 4.0
Wireless LAN
WiFi 802.11 a/b/g/n
Power
11 hours battery life / 4450 mAh
Camera
3 MP with rear camera
Flash with Barcode Scanner capability
1.3 MP front camera
Security
Samsung KNOX
• EMM (MDM+IAM)
• Secure file management
• H/W & S/W Secure platform
Programmable keys
Yes
Certification
NEC certification:
Class I, Division 2, Groups A-D
View More
Tab-Ex® 01 | Zone 2 & DIV 2
