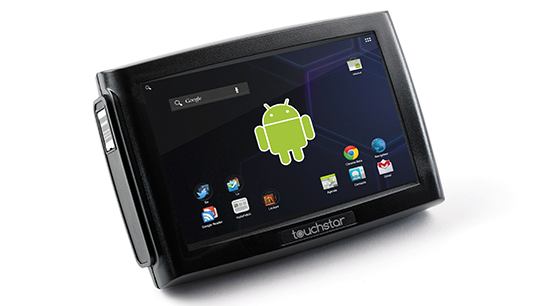

TouchStar TS3100 Android Tablet

Overview

The TouchStar TS3100 is a 'Tour de force' in both design and ingenuity. Suitable even for the most rigorous use in the most extreme conditions, the TS3100 provides full protection against dust, water and oil ingress and is fully compliant with the ATEX IECEx directive, allowing safe use even in potentially explosive environments.

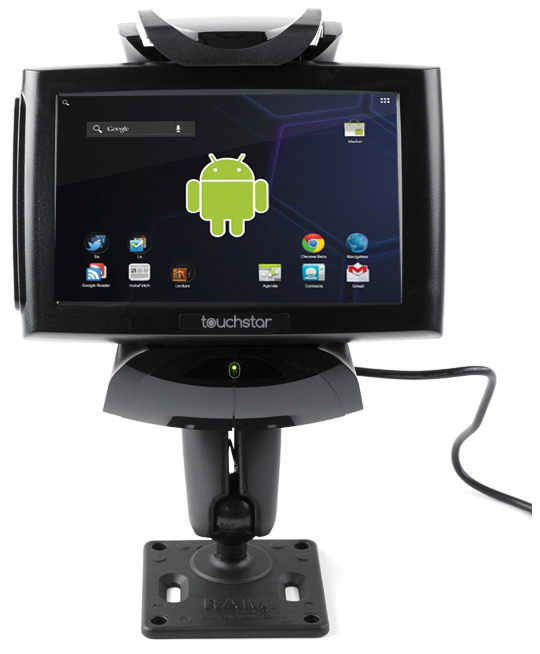

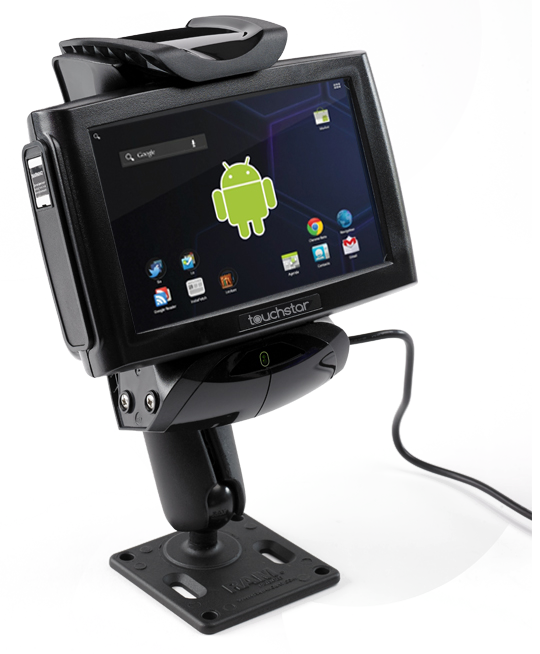

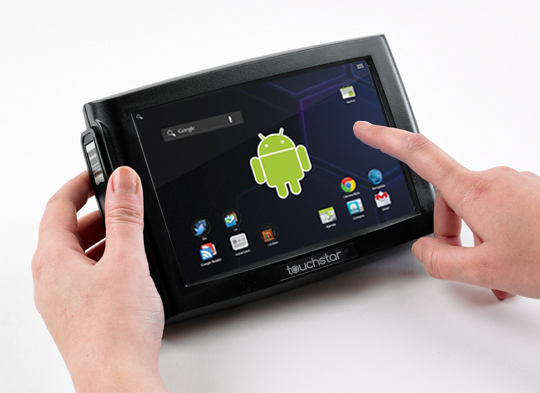

Whilst designed to be vehicle mounted, the TS3100 utilises an innovative quick-release mechanism allowing the user to detach it from the vehicle and switch smoothly and easily to a mobile mode of operation.

The integration of the powerful 3G HSPA radio technology combines with the dynamic data collection capabilities of the high resolution imager, 5 mega pixel camera and high-speed 1GHz processor to deliver startling productivity and efficiency gains.

Key Features
  • Tough rugged design, built for purpose
  • Vehicle mounted or portable
  • Large high resolution touch screen
  • High resolution imager and camera

For full technical specification click on the 'DOWNLOADS' section above.

TouchStar TS3100 Android Tablet
TouchStar TS3100 Android Tablet Datasheet (PDF Download) Info Request
Next Step, Either:

- Fill in the contact details below and hit the ‘Submit’ button.

- Telephone us on 01274 741860 (choose ‘sales’ option).

- E-mail us at sales@touchstar.co.uk


We retain the information you supply to us solely in order to deal with your query. We do not share your data outside of Touchstar Technologies and we do not use it for marketing purposes.

Please confirm to continue…

Any contact information you give to us will be used to process your request and to provide any relevant further information. It will not be shared with any third parties.

TouchStar TS3100 Android Tablet

Physical

Dimensions: 223mm (W) x 25mm (D) x 131mm (H) with
Weight: 800g
Case: Impact resistant, flame retardant ATEX spec
Internal rubber chassis for maximum impact absorption

Display Specification

7” Colour TFT, Anti-Glare, 16:9 Ratio
WVGA 800x480 pixels
LED Backlit
Direct Sunlight Readable IPS

Operating System

Android Lollipop

Touch Screen

High Impact Polycarbonate
Capacitive Option – Glove Friendly – Signature capture

Audio Specifications

Microphone – Via Cradle
High Power Speaker

Performance Specification

SOM Variscite Dart
Processor: Freescale iMX6 800MHz - 1GHz

Memory / Storage Specifications

16GB eNAND Flash – Standard – 64GB Option
1Gb Low Power DDR2 RAM

Communication & Interface Ports

Micro SD Card
SIM Card Socket

Shock

1.5m onto Concrete

Environmental

IP65

Cradle Interface

USB Host
RS232 Channel 1 – 9pin (tx, rx, cts, rts, dtr, dsr, cd, ri)
Can- Bus
Ethernet 100Base-t
Microphone - Speaker/headset interface
HSPA connector for external antenna (switched)
GPS connector for external antenna (switched)
Cradle Charge Detect
Power Input 10.25V

WiFi

802.11a/b/g/n (2.4GHz/5GHz)

GPS Module Performance

Multi-GNSS receiver
GPS, Glonass, Galileo and QZSS
Hot Start < 1Ss - Cold Start < 35s
NMEA

HSPA Module – Mobile Broadband

HSPA 7.2 Mbps downlink - 5.7 Mbps Uplink minimum

Bluetooth

Bluetooth 4.0
Hands Free Audio Interface support Bluetooth 4.0

Camera

Front and Back facing Min - 5M Pixel minimum

Flash

LUXEON Flash - back only(only on non ATEX build)

Scanner/Imager

EA 15 – EA30 Imager

Operating Temperature

-20˚C to +55˚C (charging 0˚C to +40˚C)

Storage Temperature

-40˚C to +70˚C

Internal Rechargeable Battery

Main Battery Removable 3.7V
Lithium Ion Battery 4060mAh, 30Wh

Accessories

4 Gang Battery Charger, In-Vehicle Cradle & Cable assemblies,
Expansion Hub & Cable assemblies, Smart Hub & Cable
Assemblies

Approvals

ATEX/IECEX
