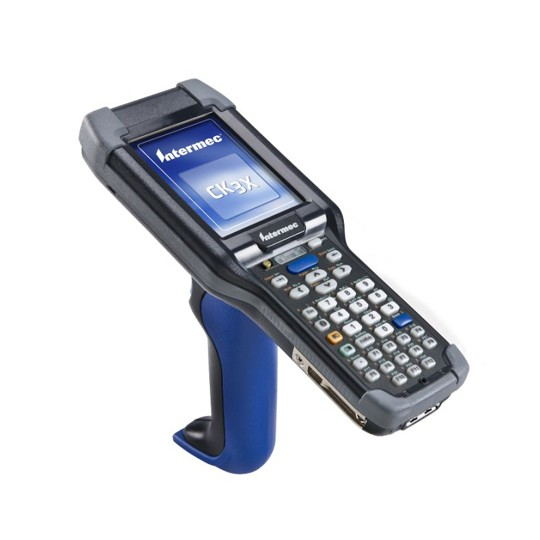

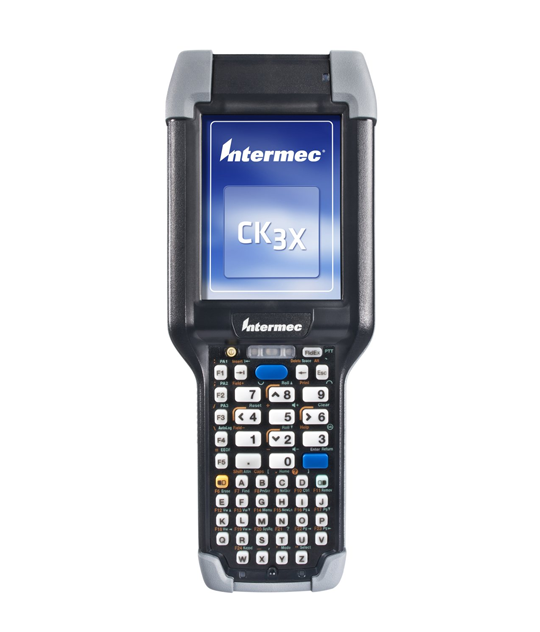

Honeywell CK3X
Talk to our experts to discuss your specification requirements and get our best price now, call +44 (0) 161 874 5050
specification
Accessories
Supports most CK3 charging and docking accessories as well as FlexDock modular docking system, vehicle dock and holder, snap on adaptors and removable scan handle.
Display
- 8.9 cm (3.5 in) Transmissive QVGA
- 240 x 320 pixels
- 65,536 (16 bit RGB) Colors
- High-Durability Touch Screen
- LED Backlight
Environment
Drop Survival
1.5 m (5 ft.) to concrete per MILSTD 810G across operating temperatures
Tumble Specification
1,000 (1.0 m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge
+/- 15 kV air discharge, +/- 8 kV direct discharge
Humidity
Non-condensing, 95%
Operating Temperature
-10°C to +50°C (+14°F to +122°F)
Charging Temperature
+5°C to +35°C (+41°F to +95°F)
Storage Temperature
-20°C to +70°C (-4°F to +158°F)
Rain and Dust Resistance
IP54, category 1

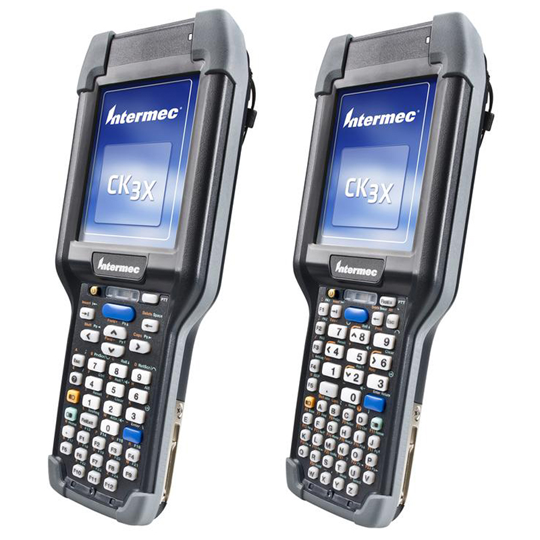

Keypad
Both keypad options feature backlit hard keycaps with laser-etched legends
Memory and Storage
Flash ROM
1GB Flash
Memory/Storage Extensions : Customer-accessible micro-SD slot for removable memory cards up to 32GB
RAM Memory
256MB RAM
Microprocessor
Texas Instruments 1GHz multi-engine processor architecture
Operating System
Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology with Honeywell HTML5 Browser (available via download)
Physical Characteristics
Length
21.6 cm (8.53 in)
Width
8.3 cm (3.29 in)
6.1 cm (2.4 in) - grip area
Depth
3.6 cm (1.42 in)
Weight
499 g (17.6 oz) with 5.1Ah battery
Power
Battery Type/Supply
Battery Pack: Removable, rechargeable
- Included - User removable, rechargeable Lithium-Ion; 3.7V, 5100 mAh (18.5 Watt-hours)
- Optional - Removable, rechargeable Lithium-Ion; 3.7V, 5200 mAh (18.5 Watt-hours) Smart Pack
- Optional - Removable, rechargeable Lithium-Ion; 3.7V, 2000 mAh (7.4 Watt-hours)
Scanning Performance
Scan Engine Options
EA30 high performance motion-tolerant 2D Imager; (up to 500in/s) white LED illumination; red laser aimer and framer optimized for all lighting conditions. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mil; 2D as small as 6.6 mils. Refer to User's Manual for depth of field performance.
EX25 near/far 2D Imager: Capable of scanning 1D and 2D barcodes from 15.2 cm to 15.2 m (6 in to 50 ft). Refer to User's Manual for depth of field performance.
Communications Interface
USB – Full Speed 2.0 OTG©, USB – Full Speed 2.0 Client©
Wireless
Wireless LAN: IEEE®802.11 a/b/g/n Dual Band WLAN
Security
WiFi Certified for WPA and WPA2
Authentication
802.1x
Cisco Compatibility
CCXv4
Encryption
WEP (64 or 128 bit), AES, TKIP
Wireless PAN
Integrated Bluetooth® Class II, Version 2.1+EDR
Operating Channels
0 to 78 (2402-2480 MHz)
Data Rates
1, 2, 3 Mbps
Antenna
Internal
