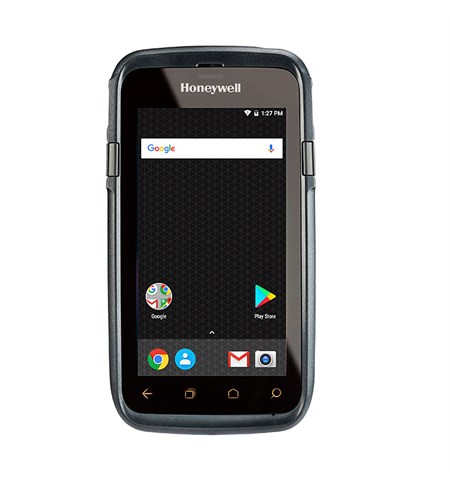

118 mm (4.7 in) in High Definition (1280 x 720) bright color LCD with backlight, outdoor readable, optically bonded to
touch panel, oleophobic fingerprint rejection
Rugged multi-touch capacitive touch panel, optically bonded for extra durability and better sunlight readability. Automatic
switching between glove and finger modes. Water droplet rejection
On-screen customizable keypad, dual-action side scan triggers, volume up/down, camera, power button
Speaker, T3/M3 HAC-compliant, dual microphone support with noise cancellation. PTT support and Bluetooth® wireless headset
support
13-megapixel color camera, 4K video with image stabilization, and advanced software features for enhanced exposure control
Ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, pressure sensor
Decode Capabilities
:
Honeywell N6600 Slim Imager Engine (1D/2D barcode symbologies) Honeywell SDKs for Android
-
Up to 400 Mbps CAT13 LTE downlink
-
Up to 75 Mbps CAT5 LTE uplink
o
LTE (FDD) – Bands 1,2,3,4,5,7,8,12,13,17,19, 20,25,26,28,29
o
LTE (TDD) – Bands 38,39,40,41
o UMTS/HSPA+ (3G) – Bands 1, 2, 4, 5, 6, 8, 9, 19
o
GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
o
1xRTT/EV-DO (Bands BC0,BC1,BC10 (B26 BW))
UMTS/HSPA+ (3G) (Bands 1, 2, 4, 5, 6, 8, 9, 19)
GSM/GPRS/EDGE Quad-Band (850/900/1800/ 1900 MHz)
1xRTT/EV-DO (Bands BC0,BC1,BC10 (B26 BW))
WLAN:
IEEE 802.11 a/b/g/n/ac; Wi-Fi certified
Additional WLAN Features
:
802.11r (802.11k/mc - via future release)
WLAN Security
:
OPEN, WEP, WPA/WPA2 (Personal and Enterprise)
Supported EAP:
TLS, PEAP, TTLS, PWD, FAST, LEAP CCX Version 4 certified
Bluetooth:
V5.0 Bluetooth and BLE Supported
Bluetooth Profiles:
HFP,PBAP, A2DP, AVRCP, OPP, SPP, GATT
NFC:
Integrated Near Field Communication
VoIP:
IPSec V4/L2TP, PPTP
VPN:
IPSec V4/L2TP, PPTP
Push to Talk (PTT)
:
Supported
GPS Supported Protocols
:
Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo and Beidou
MECHANICAL
Dimensions
:
160 mm x 82.5 mm x 19 mm
(6.3 in x 3.2 in x 0.75 in)
Weight:
350 grams (12.4 oz) with battery pack
ENVIRONMENTAL
Operating Temperature
:
-20°C to 50°C (-4°F to 122°F)
-30°C to 70°C (-22°F to 158°F)
0 % to 95 % relative humidity (non-condensing)
2.4 m (8 ft) to concrete at room temp
per MIL-STD 810G
1.5 m (5 ft) to concrete at -10ºC to 50ºC temperature range; 1.2 m (4 ft) to concrete down to -20ºC
Exceeds 1,000 1.0 m (3.3 ft) tumbles per IEC 60068-2-32 specification
±15KV Air and ±8KV Direct
Independently certified to meet IP67 & IP65 standards for moisture and particle intrusion.
